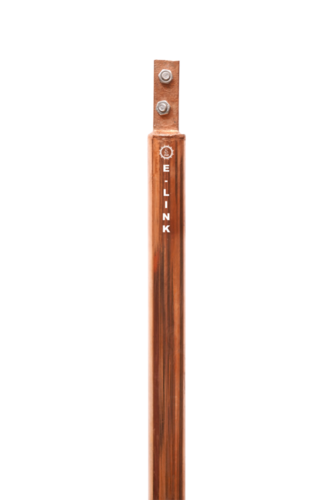

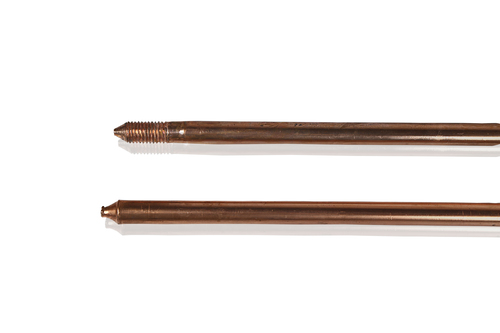

Copper Bonded Coated Earthing Electrode

Product Description

A Copper Bonded Coated Earthing Electrode is a type of grounding electrode used in electrical systems to provide a safe path for fault currents to dissipate into the earth It is designed to ensure proper earthing grounding for electrical installations protecting equipment and personnel from electrical faults lightning strikes and static discharge

 Key Features

1 Copper Bonded Coating

    The electrode is typically made of highquality steel or another conductive material

    It is coated with a layer of copper through a molecular bonding process ensuring a strong and durable connection between the steel core and the copper layer

    The copper coating provides excellent conductivity and corrosion resistance making it suitable for longterm use in various soil conditions

2 Durability

    The copper bonding ensures that the electrode does not rust or corrode easily even in harsh environments

    It is resistant to chemical and electrochemical corrosion which is critical for maintaining a lowresistance grounding path over time

3 High Conductivity

    Copper is an excellent conductor of electricity and the bonded coating ensures efficient dissipation of fault currents into the ground

4 Ease of Installation

    These electrodes are typically available in standard lengths eg 12 meters 24 meters and diameters making them easy to install in the ground

    They can be driven directly into the soil using a hammer or specialized tools

5 Applications

    Used in electrical substations telecommunications towers industrial plants residential buildings and lightning protection systems

    Suitable for areas with high soil resistivity or corrosive soil conditions

 Advantages

 Long Lifespan The copper coating ensures durability and a long operational life

 Low Maintenance Requires minimal maintenance due to its corrosionresistant properties

 CostEffective Provides a balance between performance and cost compared to solid copper electrodes

 Reliable Performance Ensures consistent grounding performance in various environmental conditions

 Installation Tips

 The electrode should be installed vertically into the ground to maximize contact with the soil

 The depth of installation depends on soil resistivity and local electrical codes

 Use a grounding enhancement material like bentonite or conductive concrete around the electrode to improve conductivity in highresistivity soils

 Standards

Copperbonded earthing electrodes are manufactured and tested according to international standards such as

 IEC 62561 Lightning Protection System Components

 IEEE 80 Guide for Safety in AC Substation Grounding

 BS EN 62305 Protection Against Lightning

 Comparison with Other Electrodes

 Solid Copper Electrodes More expensive but offer slightly better conductivity

 Galvanized Steel Electrodes Less expensive but prone to corrosion over time

 CopperBonded Electrodes Offer a good balance of cost durability and performance

In summary copperbonded coated earthing electrodes are a reliable and costeffective solution for grounding systems offering excellent conductivity durability and corrosion resistance
