Earthing Electrode

Earthing Electrode rods are highly conductive cylindrical elements that are commonly used in grounding applications to provide a low-resistance path to ensure efficient diversion of surge currents into the earth. They are made up of top-quality engineering materials with high rigidity and conductivity. The excellent thermal and corrosion resistance of these sturdy bars make them highly demanding among our customers. The ends of these rods are provided with connecting pins to rigidly install them with the help of mechanical fasteners. Get these top-grade Earthing Electrode rods in large quantities with an assurance of fast and safe delivery at a reasonable price.
Product Image (ELDGP 502)

50mm dia 2mtr 250 micron copper coated industial earthing rod

Price: 2304 INR/Number

E-Link Make : ( PRIME MODEL ) Model : ELDGP 502 Length of pipe : 2 Mtr Outer Pipe Dia : 48 mm Outer Pipe Thickness : 3.2 mm Inner strip size: 40*6 (GALVANIZED) Inner fill Chemical resistivity :0.13 ohm-mtr. Allowable Tolerance is as per IS 1239 (-10%)

Product Image (ELRC 243)

24 mm dia 3 mtr copper coated earthing rod 30 micron

Price: 800 INR/Number

E-Link Make : Model : ELRC 243 length of Rod : 3 Mtr Dia of Rod : 24 mm Coating: Copper Micron : 50 Micron Avg. Allowable Tolerance is as per IS 9550

Product Image (ELDCP1 803)

80mm dia 3mtr 100 micron copper coated industrial earthing rod

Price: 7645 INR/Piece

E-Link Make : ( PRIME MODEL ) Model : ELDCP1 803 Length of pipe : 3 Mtr Outer Pipe Dia : 77 mm Outer Pipe Thickness : 3.6 mm Ineer strip size: 50*10 (30Micron CU Coated ) (100 MICRON COPPER COATED) Innerfill Chemical resistivity :0.13 ohm-mtr. Allowable Tolerance is as per IS 1239 (-10%)

Product Image (05)

Galvanized earthing electrode

Price: 4600 INR/Kit
  • Strength:NA
  • Warranty:1 YEAR
  • Surface Treating:GALVENIZED
  • Color:SILVER
  • Weight:18 KG
  • Material:Galvanized Steel
  • Product Type:EARTHING
  • Function:EARTHING SAFETY
  • Delivery Time:3 Days
  • Supply Ability:300 Per Day
Product Image (ELDCS2 501)

50mm dia 1 mtr 250 micron copper coated industrial earthing rod

Price: 1809 INR/Number

E-Link Make : ( SMART MODEL ) Model : ELDCS2 501 Length of pipe : 1 Mtr Outer Pipe Dia : 48 mm Outer Pipe Thickness : 2.9 mm Inner strip size: 32*6 (30micron CU Coated) (250 MICRON COPPER COATED) Innerfill Chemical resistivity :0.13 ohm-mtr. Allowable Tolerance is as per IS 1239 (-10%)

Product Image (ELDCS2)

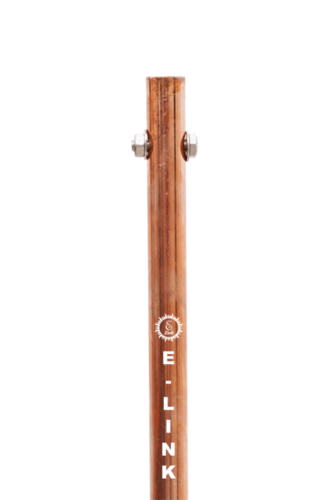

50 MM DIA 2 MTR 250 MICRON COPPER COATED INDUSTRIAL EARTHING ROD

Price: 3459 INR/Number

E-Link Make : ( SMART MODEL ) Model : ELDCS2 502 Length of pipe : 2 Mtr Outer Pipe Dia : 48 mm Outer Pipe Thickness : 2.9 mm Ineer strip size: 32*6 (30Micron CU Coated) (250 MICRON COPPER COATED) Inner-fill Chemical resistivity :0.13 ohm-mtr. Allowable Tolerance is as per IS 1239 (-10%)

Product Image (CRDC1 502)

50mm dia 2 mtr 100 micron copper coated earthing rod

Price: 2084 INR/Number

E-Link Make : ( CRYSTAL MODEL ) Model : CRDC1 502 Length of pipe : 2 Mtr Outer Pipe Dia : 48 mm Outer Pipe Thickness : 1.6 mm Inner strip size: 30*5 MS (100 MICRON COPPER COATED) Inner-filled Chemical resistivity : >30 ohm-mtr. Allowable Tolerance is as per IS 1239 (-10%)

Product Image (ELDGP 603)

60mm dia 3 mtr 250 micron copper coated industrial earthing rod

Price: 7000 INR/Piece

E-Link Make : ( PRIME MODEL ) Model : ELDGP2 603 Length of pipe : 3 Mtr Outer Pipe Dia : 60 mm Outer Pipe Thickness : 3.6 mm Ineer strip size: 40*6 (30Micron CU Coated ) (250 MICRON COPPER COATED) Innerfill Chemical resistivity :0.13 ohm-mtr. Allowable Tolerance is as per IS 1239 (-10%)

Product Image (ELDGP1 806)

90mm dia 2 mtr 100 micron copper coated industrial earthing rod

Price: 6435 INR/Number

E-Link Make : ( PRIME MODEL ) Model : ELDCP1 902 Length of pipe : 2 Mtr Outer Pipe Dia : 88 mm Outer Pipe Thickness : 4 mm Ineer strip size: 50*10 (30Micron CU Coated) (100 MICRON COPPER COATED) Innerfill Chemical resistivity :0.13 ohm mtr. Allowable Tolerance is as per IS 1239 (-10%)

Product Image (ELDGP1 903)

90mm dia 3 mtr 100 micron copper coated industrial earthing rod

Price: 9674 INR/Number

E-Link Make : ( PRIME MODEL ) Model : ELDCP1 903 Length of pipe : 3 Mtr Outer Pipe Dia : 88 mm Outer Pipe Thickness : 4 mm Ineer strip size: 50*10 (30Micron CU Coated ) (100 MICRON COPPER COATED) Innerfill Chemical resistivity :0.13 ohm-mtr. Allowable Tolerance is as per IS 1239 (-10%)

Product Image (ELDCS2 503)

50 mm dia 3 mtr 250 micron copper coated industrial earthing rod

Price: 5164 INR/Number

E-Link Make : ( SMART MODEL ) Model : ELDCS2 503 Length of pipe : 3 Mtr Outer Pipe Dia : 48 mm Outer Pipe Thickness : 2.9 mm Inner strip size: 32*6 (micron CU Coated) (250 MICRON COPPER COATED) Inner-fill Chemical resistivity :0.13 ohm-mtr. Allowable Tolerance is as per IS 1239 (-10%)

Product Image (CRDC1 501)

50mm 1 mtr 100 micron copper coated industrial earthing rod

Price: 1155 INR/Number

E-Link Make : ( CRYSTAL MODEL ) model : CRDC1 501 Length of pipe : 1 Mtr Outer Pipe Dia : 48 mm Outer Pipe Thickness : 1.6 mm Inter strip size: 30*5 MS (100 MICRON COPPER COATED) Inner filled Chemical resistivity : >30 ohm-mtr. Allowable Tolerance is as per IS 1239 (-10%)

Product Image (ELDGP1 802)

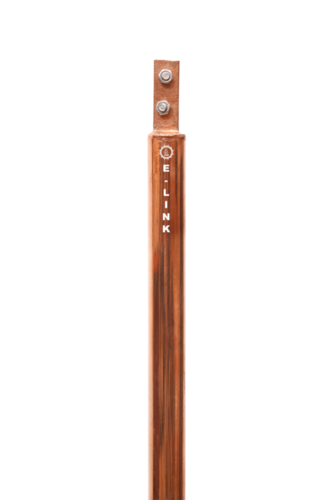

80MM DIA 2MTR 100 MICRON COPPER COATED INDUSTRIAL EARTHING ROD

Price: 9000 INR/Number

E-Link Make : ( PRIME MODEL) Model : ELDGP1 802 Length of pipe : 2 Mtr Outer Pipe Dia : 77 mm Outer Pipe Thickness : 3.6 mm Ineer strip size: 50*10 (30Micron CU Coated ) (100 MICRON COPPER COATED) Innerfill Chemical resistivity :0.13 ohm mtr. Allowable Tolerance is as per IS 1239 (-10%)

Product Image (ELDGS 503)

50MM DIA 3 MTR HOT DIP Galvanized Earthing Electrode

Price: 4600 INR/Piece

Hot Dip Galvanized Earthing Electrode is popularly known among our customers owing to its resilience and longevity. This electrode is designed and developed with the help of cutting-edge tools and techniques. It has got high build quality and resilience. it is made up of galvanized alloyed metal that is highly resistant to corrosion, rust, and other such degradation. Therefore, the offered Hot Dip Galvanized Earthing Electrode is sure to last for an extended period of time.

Product Image (ELDGP2 503)

50 mm dia 3 mtr 250 micron copper coated industrial earthing rod

Price: 5494 INR/Number

E-Link Make : ( PRIME MODEL ) model : ELDCP2 503 Length of pipe : 3 Mtr Outer Pipe Dia : 48 mm Outer Pipe Thickness : 3.2 mm Ineer strip size: 40*6 (30Micron CU Coated ) (250 MICRON COPPER COATED) Innerfill Chemical resistivity :0.13 ohm-mtr. Allowable Tolerance is as per IS 1239 (-10%)

Product Image (03)

Galvanized Earthing Electrode

Price: 4600 INR/Piece
  • Material:other
  • Application:Earthing
  • Supply Ability:300 Per Day
  • Delivery Time:1-2 Days
