Lightning Arrester

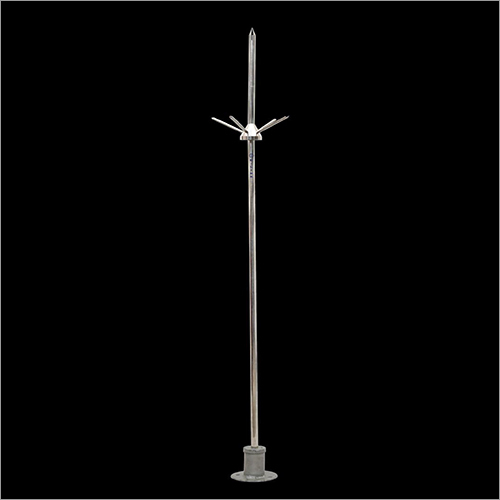

stainless steel (ss) lighting arrester

Lightning Arrestor : ( Stainless Steel ) 1. Material : SS 304 2. Multi Point Charge Collector Design : 16 mm Dia 300 mm long solid rod, 8 mm Dia 100 mm long solid rod 4 nos., commonly connected on 50 mm dia Solid Rod 3. Supporting Rod Dia : 16 mm 4. Length : 1.3 meter

Hot Dip Galvanized Lightning Arrester

AURA 60 ESE lightning arrester

ESE LA _AURA60 Supply of AURA ESE Lightening Air Terminal with the below Technical Parameters : 1. Stainless Steel Material (304 L) suitable for corrosive enviroment. 2. T = 60 Micro Seconds. 3. HIZAL Lab. Tested As Per NFC 17 102(2011) Standard. 4.Tested for 200KA Peak Impulse Current. 5. 1 Peak Avg. = 100KA. 6. Protection Radius : 107 Meter (Level Iv) Model : Aura 60 Make: Paratonax (Turkry / Europe)

copper coated lightning

LightningArrester ( 250 micron CU Coated ) (with Base Plate) 1.Base Material : Low Carbon Steel (MS) 2.Multi Point Charge Collector Design : 16 mm Dia : 300 mm long solid rod, 8 mm Dia 100 mm long Solid Rod 4 Nos, commonly connected on 50 mm dia Solid rod 3.Supporting Rod Dia : 16 mm 4.Copper Coating Thickness : 250 Micron Base Plate for LA Base Plate for LA with Rubber Sheet and other necessary items for providing Insulation for LA isolation(90 mm Dia 5 mm thickness CU Coated) CU Coated material have chances of getting Corrosion

Earthing Lightning Arrester

Copper Coated Lightning Arrester

SS Lightning Arrester

Industrial Copper Lightning Arrester

Copper Multi Spike Lightning Arrester

SS Multi Spike Lightning Arrester
