Copper Coated Earthing Electrode

60mm dia 2 mtr 250 micron copper coated industrial earthing rod

E-Link Make : ( PRIME MODEL ) model : ELDCP2 602 Length of pipe : 2 Mtr Outer Pipe Dia : 60 mm Outer Pipe Thickness : 3.6 mm Ineer strip size: 40*6 ( 30Micron CU Coated ) (250 MICRON COPPER COATED) Innerfill Chemical resistivity :0.13 ohm-mtr. Allowable Tolerance is as per IS 1239 (-10%)

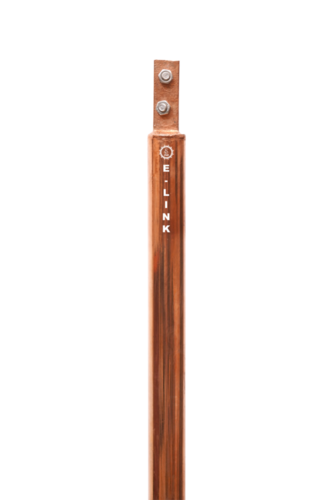

Getco earthing

E-Link Make : Model : ELRC2 243 (G) Length of Rod : 3 Mtr Dia of Rod : 24 mm Copper Coating : 250 micron copper coated Clamp Size: 50mm x 6mm x 130mm BUSS BAR: 75mm X 10 mmX 400 mm Nut Bolt Hole :(11mm Size)-2nos hole Nut Bolt Size: SS(M10 x 40mm) -2nos Tested By : ERDA / CPRI

14 mm dia 2 mtr copper coated earthing rod 30 micron

E-Link Make :Model : ELRC 142 Length of Rod : 2 Mtr Dia of Rod : 14 mm Coating: Copper Micron : 50 Micron Avg. Allowable Tolerance is as per IS 9550

24 mm dia 2 mtr copper coated earthing rod 30 micron

E-Link Make : Model : ELRC 242 length of Rod : 2 Mtr Dia of Rod : 24 mm Coating: Copper Micron : 50 Micron Avg. Allowable Tolerance is as per IS 9550

Ul listed Earthing Rod

ELink Make : Model : ELUL-1710 Length of Rod : 10 Feet Dia of Rod : 17 mm Copper Coating : 250 micron copper coated Without Clamp UL LISTED

17mm 2 mtr copper coated 30 micron

E-Link Make : Model : ELRC 172 Length of Rod : 2 Mtr Dia of Rod : 17 mm Coating: Copper Micron : 50 Micron Avg. Allowable Tolerance is as per IS 9550

Hot Dip Galvanized Earthing Electrode

Copper Bonded Coated Earthing Electrode
