GI Earthing Electrode

50MM DIA 3 mtr Galvanized Earthing Electrode

E-Link Make : ( CRYSTAL MODEL ) model : CRDG 503 Length of pipe : 3 Mtr Outer Pipe Dia : 48 mm Outer Pipe Thickness : 1.6 mm Ineer strip size: 30*5 MS (GALVANIZED) Innerfilled Chemical resistivity : >30 ohm-mtr. Allowable Tolerance is as per IS 1239 (-10%)

50mm dia 2 mtr galvanized earthing

E-Link Make : ( CRYSTAL MODEL ) Model : CRDG 502 Length of pipe : 2 Mtr Outer Pipe Dia : 48 mm Outer Pipe Thickness : 1.6 mm Inner strip size: 30*5 MS (GALVANIZED) Innerfilled Chemical resistivity : >30 ohm-mtr. Allowable Tolerance is as per IS 1239 (-10%)

80 MM DIA 2MTR GI EARTHING ROD

E-Link Make : ( CRYSTAL MODEL ) Model : CRDG 802 Length of pipe : 2 Mtr Outer Pipe Dia : 77 mm Outer Pipe Thickness : 1.6 mm Ineer strip size: 40*6 MS (GALVANIZED) Innerfilled Chemical resistivity : >30 ohm-mtr. Allowable Tolerance is as per IS 1239 (-10%)

80 MM DIA 3MTR GI EARTHING ROD

E-Link Make : ( CRYSTAL) Model : CRDC 803 Length of pipe : 3 Mtr Outer Pipe Dia : 77 mm Outer Pipe Thickness : 1.6 mm Ineer strip size: 40*6 MS (30-50 MICRON COPPER COATED) Innerfilled Chemical resistivity : >30 ohm-mtr. Allowable Tolerance is as per IS 1239 (-10%)

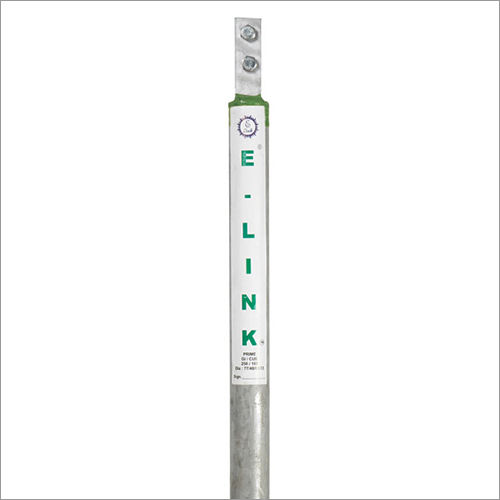

E Link Smart Galvanized Earthing Electrode

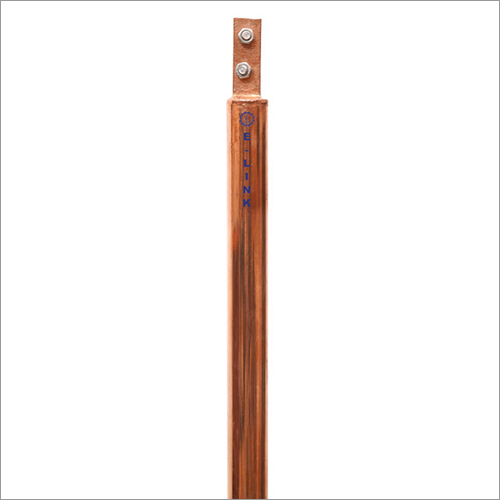

Copper Earthing Electrode
