EARTHING ELCTRODE CRDG- 603 CRTSTAL MODEL

Send Inquiry

Request To Call Back

EARTHING ELCTRODE CRDG- 603 CRTSTAL MODEL

Price 2514.00 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

EARTHING ELCTRODE CRDG- 603 CRTSTAL MODEL Specification

Diameter
603 Millimeter (mm)

Life Span
15-20 year

Purity
99.9%

Application
Industrial

Function
To safely discharge fault current

Shape
Cylindrical Rod

Surface Treating
Polished

Tolerance
10% Millimeter (mm)

Dimension (L*W*H)
60*60*3000 Millimeter (mm)

Weight
18.80 Kilograms (kg)

Color
Silver

Rated Voltage
100- 240 Volt (V)

Operating Temperature
-10 to +80 Celsius (oC)

Warranty
1 year

Display Type
NA

Frequency
50 / 60 Hertz (HZ)

Material
EARTHING

Conductor
NA

EARTHING ELCTRODE CRDG- 603 CRTSTAL MODEL Trade Information

Minimum Order Quantity
1 Piece

FOB Port
nahvasehva /hazira

Supply Ability
2000 Pieces Per Month

Delivery Time
5 Days

Sample Available
No

Packaging Details
BUBBLE PACKING

Main Domestic Market
All India

EARTHING ELCTRODE CRDG- 603 CRTSTAL MODEL About

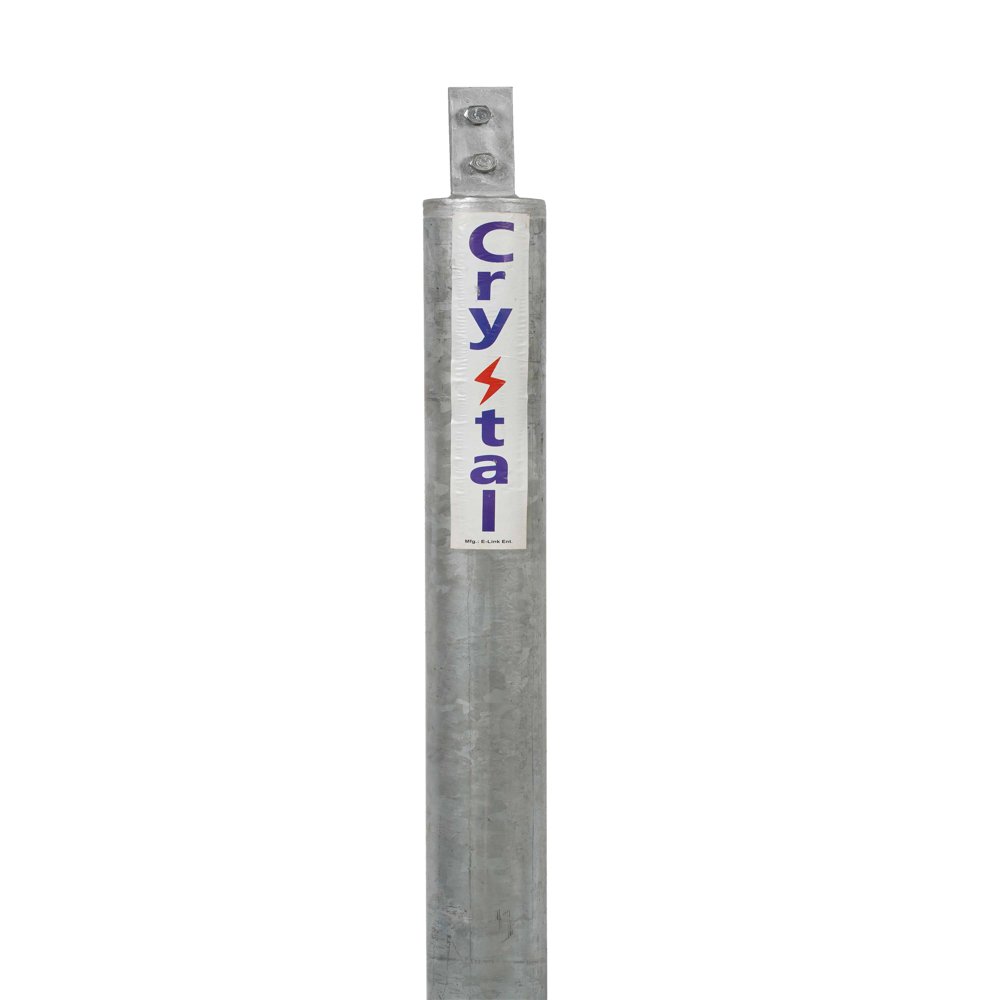

E-Link Make : ( CRYSTAL MODEL )

Model : CRDG 603

Length of pipe : 3 Mtr

Outer Pipe Dia : 60 mm

Outer Pipe Thickness : 1.6 mm

(GALVANIZED)

Inner strip size: 30*5 (MS TOP TO BOTTOM WELDED)

Innerfilled Chemical resistivity : >30 ohm-mtr.

Allowable Tolerance is as per IS 1239 (-10%)

TRANSPORT EXTRA

The Galvanized Earthing Electrode is designed to provide low-impedance grounding in high-resistivity soil. It safely dissipates lightning energy and electrical fault currents, ensuring reliable and long-lasting performance. Its hot-dip galvanized construction offers excellent corrosion resistance, high mechanical strength, and durability, making it suitable for industrial, commercial, and infrastructure applications.
