EARTHING ELECTRODE ELDCS2 502 ( 250 M ) SMART MODEL

Send Inquiry

Request To Call Back

EARTHING ELECTRODE ELDCS2 502 ( 250 M ) SMART MODEL

Price 4557.0 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

EARTHING ELECTRODE ELDCS2 502 ( 250 M ) SMART MODEL Specification

Copper Thickness
250 Millimeter (mm)

Life Span
15-20 YEAR

Purity
99.9%

Diameter
502 Millimeter (mm)

Application
Industrial

Shape
Cylindrical Rod

Surface Treating
Polished

Tolerance
10 % Millimeter (mm)

Dimension (L*W*H)
48*48*2000 Millimeter (mm)

Weight
10.5 Kilograms (kg)

Color
Brown

Rated Voltage
100- 240 Volt (V)

Warranty
1 YEAR

Operating Temperature
-10 to +80 Celsius (oC)

Display Type
NA

Material
MS ELECTRODE

Frequency
50 / 60 Hertz (HZ)

Conductor
NA

EARTHING ELECTRODE ELDCS2 502 ( 250 M ) SMART MODEL Trade Information

Minimum Order Quantity
1 Piece

Payment Terms
Cash Advance (CA), Cash in Advance (CID), Cash Against Delivery (CAD), Cash on Delivery (COD)

Supply Ability
500 Pieces Per Day

Delivery Time
5 Days

Sample Available
No

Sample Policy
Sample costs shipping and taxes has to be paid by the buyer

Main Domestic Market
All India

Certifications
CPRI & ERDA

EARTHING ELECTRODE ELDCS2 502 ( 250 M ) SMART MODEL About

E-Link Make : ( SMART MODEL )

Model : ELDCS2 502

Length of pipe : 2 Mtr

Outer Pipe Dia : 48 mm
Outer Pipe Thickness : 2.9 mm

(250 MICRON COPPER COATED)

Ineer strip size: 32*6 (30Micron CU Coated TOP TO

BOTTOM WELDED)

Innerfill Chemical resistivity :0.13 ohm-mtr.

Allowable Tolerance is as per IS 1239 (-10%)

TRANSPORT EXTRA

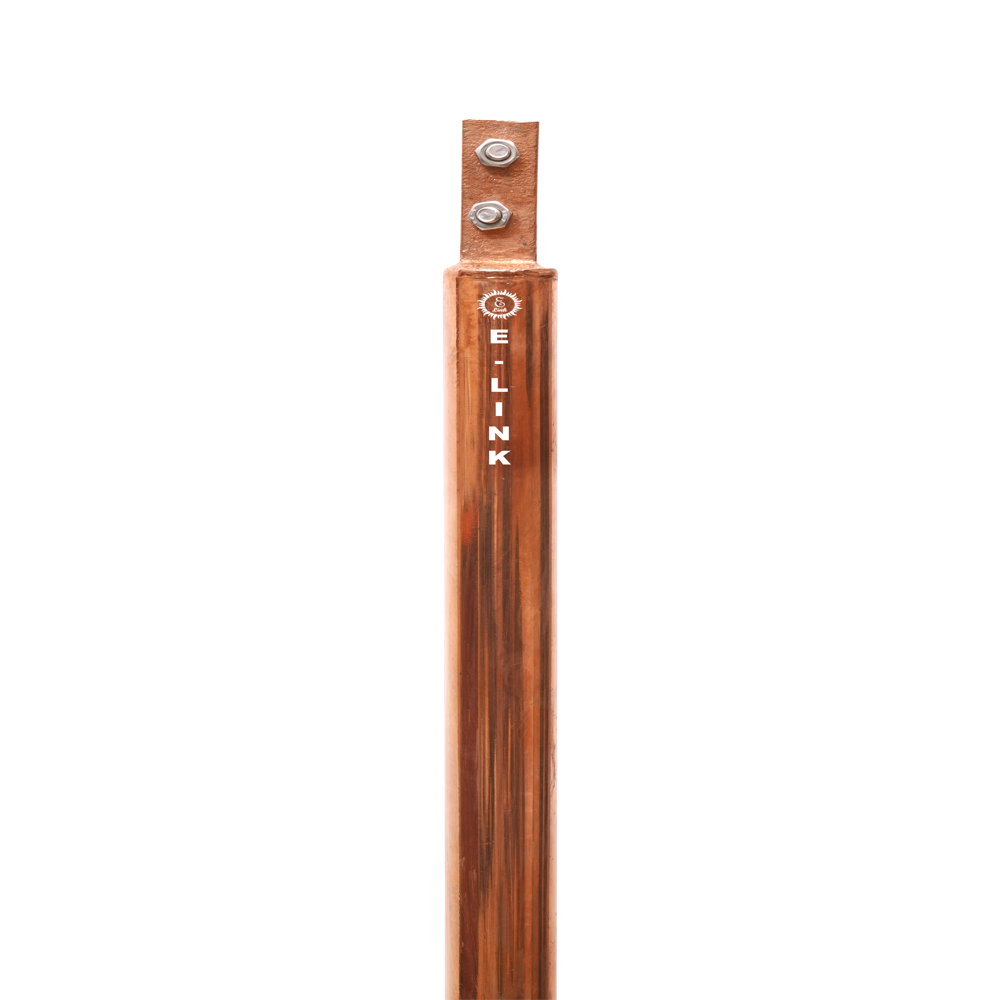

The Copper Coated Earthing Electrode is manufactured using a high tensile low carbon steel core with 99.9% pure electrolytic copper coating. The copper coating provides excellent conductivity and corrosion resistance, while the steel core provides high mechanical strength.
