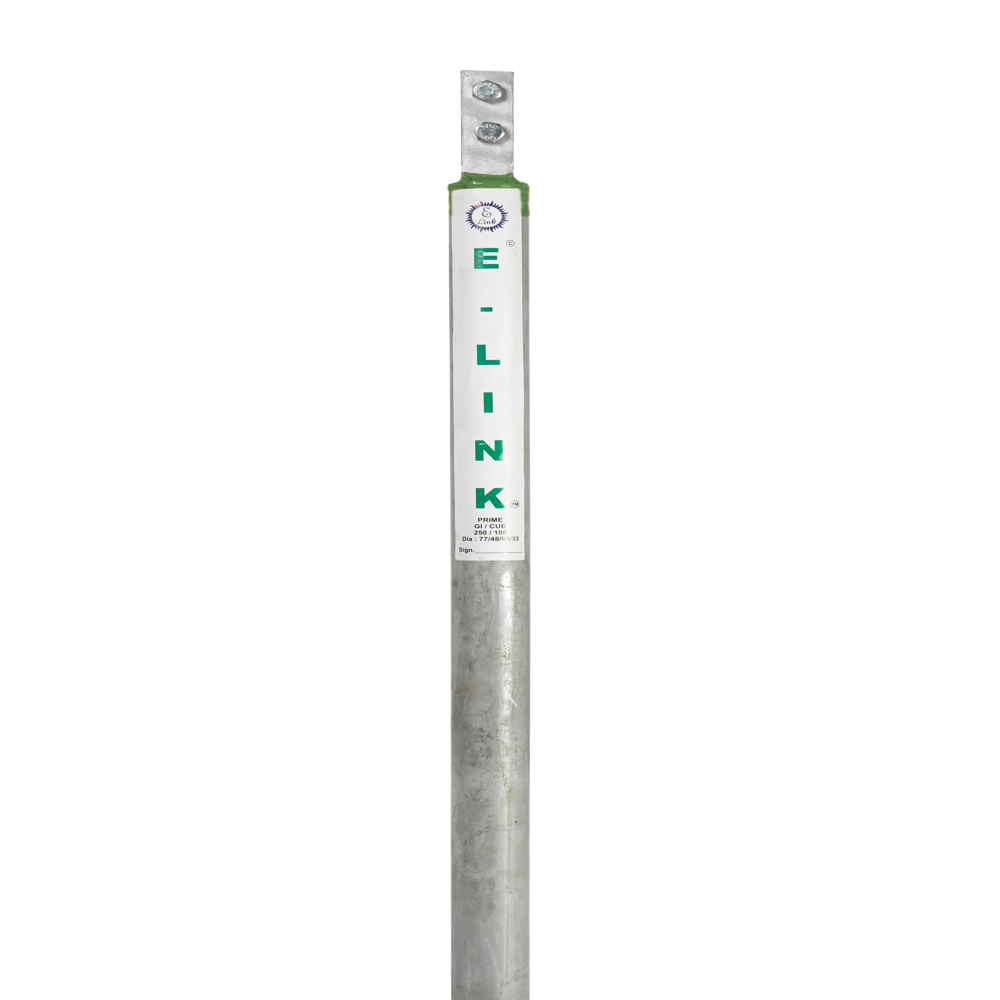

EARTHING ELECTRODE ELDGP 903 PRIME MODEL

Send Inquiry

Request To Call Back

EARTHING ELECTRODE ELDGP 903 PRIME MODEL

Price 8154.00 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

EARTHING ELECTRODE ELDGP 903 PRIME MODEL Specification

Purity
99.9%

Copper Thickness
80 GI Micrometers (um)

Diameter
903 Millimeter (mm)

Life Span
20 - 25 YEAR

Product Type
EARTHING

Application
Industrial

Function
To safely discharge fault current

Shape
Cylindrical Rod

Surface Treating
Polished

Tolerance
10% Millimeter (mm)

Dimension (L*W*H)
88*88*3000 Millimeter (mm)

Weight
45 Kilograms (kg)

Color
Silver

Rated Voltage
100- 240 Volt (V)

Warranty
1 YEAR

Operating Temperature
-10 to +80 Celsius (oC)

Display Type
NA

Conductor
NA

Frequency
50 / 60 Hertz (HZ)

Material
GALAVIZED ELECTRODE

EARTHING ELECTRODE ELDGP 903 PRIME MODEL Trade Information

Minimum Order Quantity
1 Piece

FOB Port
nahvasehva /hazira

Supply Ability
2000 Pieces Per Month

Delivery Time
5 Days

Sample Available
No

Packaging Details
BUBBLE PACKING

Main Domestic Market
All India

About EARTHING ELECTRODE ELDGP 903 PRIME MODEL

E-Link Make : ( PRIME MODEL )

Model : ELDGP 903

Length of pipe : 3 Mtr

Outer Pipe Dia : 88 mm

Outer Pipe Thickness : 4 mm

(GALVANIZED)

Ineer strip size: 50*10 (80 microns HDGI TOP TO

BOTTOM WELDED)

Innerfill Chemical resistivity :0.13 ohm-mtr.

Allowable Tolerance is as per IS 1239 (-10%)

TRANSPORT EXTRA

The galvanized outer pipe provides mechanical protection and corrosion resistance, while the inner welded strip carries the fault current safely to earth. The system is designed for reliable and long-lasting grounding performance.

Tell us about your requirement

Price:

Quantity

Select Unit

50
100
200
250
500
1000+

Additional detail

Mobile number

More Products in GI Earthing Electrode Category

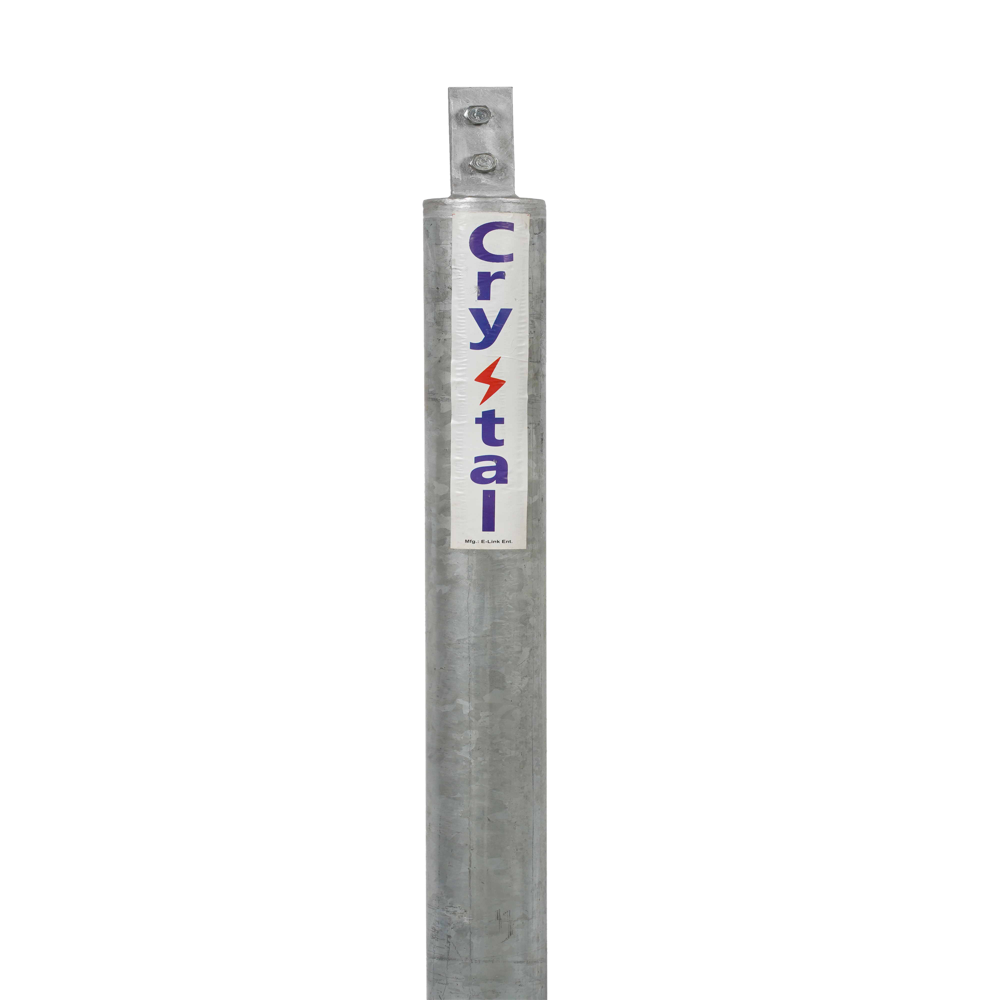

EARTHING ELECTRODE CRDG 503 CRYSTAL MODEL
