EARTHING ELECTRODES

About EARTHING ELECTRODES

E-Link Make : ( PRIME MODEL )

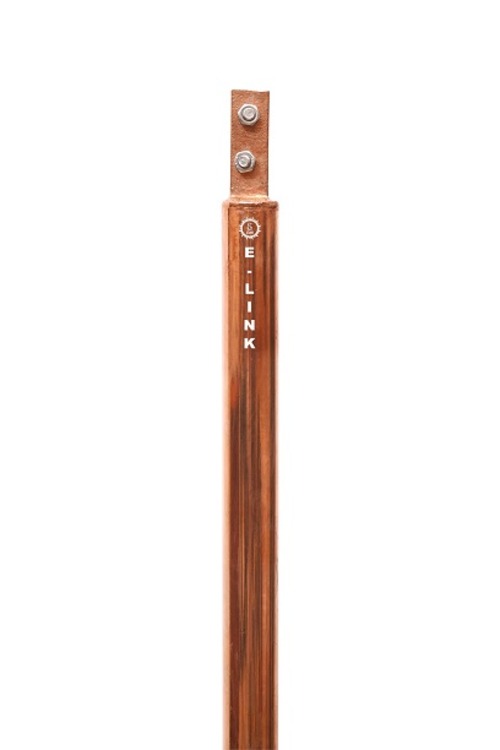

Model : ELDCP1 501

Length of pipe : 1 Mtr

Outer Pipe Dia : 32 mm

Outer Pipe Thickness : 3.2 mm

(100 MICRON COPPER COATED)

Ineer strip size: 25*6 (30Micron CU Coated TOP TO BOTTOM WELDED)

Innerfill Chemical resistivity :0.13 ohm-mtr

Allowable Tolerance is as per IS 1239 (-10%)

1. Materials Required

• Copper Strip-in-Pipe Earthing Electrode
  (Copper strip enclosed inside a perforated GI pipe or copper pipe)

• Backfill Compound (BFC) / Earth enhancement compound

• GI/Copper Earthing Strip (for connection to equipment)

• Clamps, Nuts, Bolts, Washers (tinned or brass)

• FRP / Concrete Earth Pit Chamber with cover

• PVC Watering Pipe (20 mm )

• Tools: Spade, hammer, crowbar, funnel, tape, earth tester (megger)
