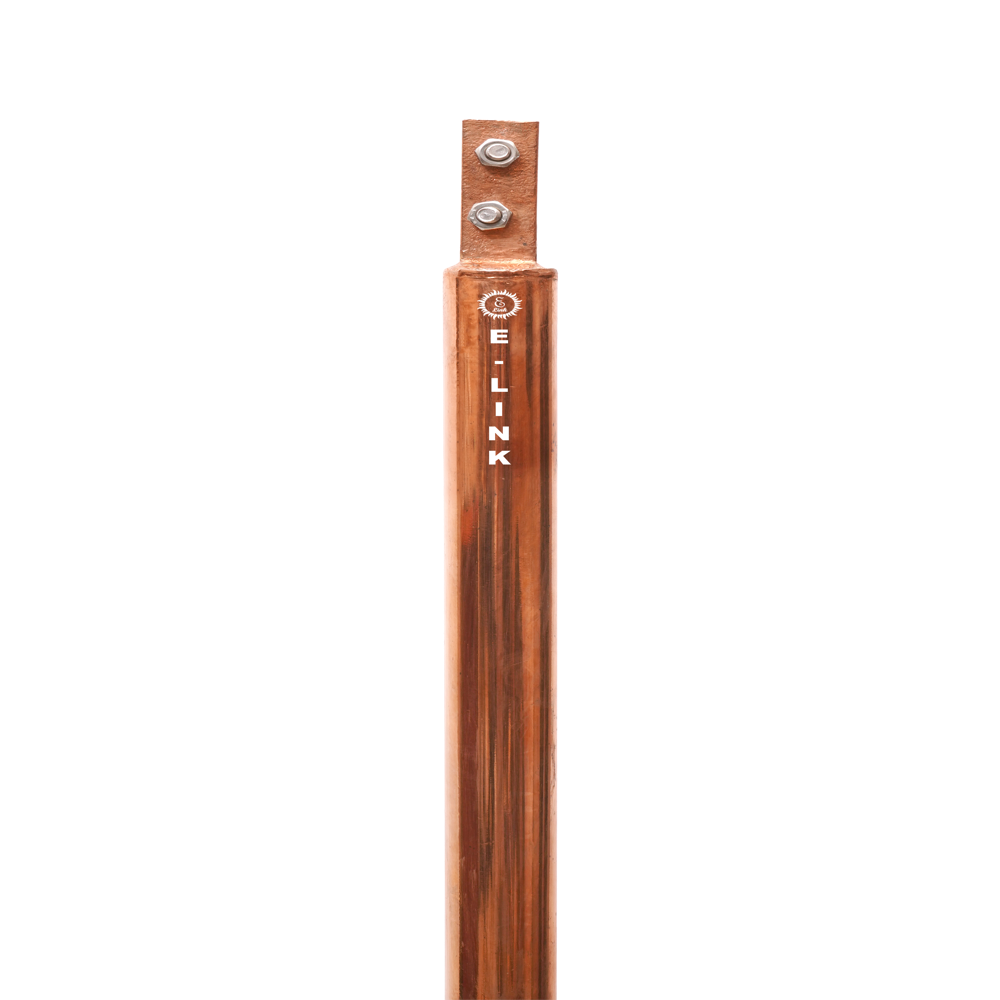

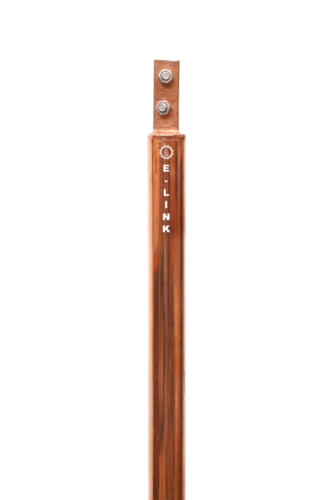

EARTHING ELECTRODES ( PRIME MODEL ELDCP1 -501 )100 MICRON )

About EARTHING ELECTRODES ( PRIME MODEL ELDCP1 -501 )100 MICRON )

E-Link Make : ( PRIME MODEL )

Model : ELDCP1 501

Length of pipe : 1 Mtr

Outer Pipe Dia : 32 mm

Outer Pipe Thickness : 3.2 mm

(100 MICRON COPPER COATED)

Ineer strip size: 25*6 (30Micron CU Coated TOP TO BOTTOM WELDED)

Innerfill Chemical resistivity :0.13 ohm-mtr

Allowable Tolerance is as per IS 1239 (-10%)

GST EXTRA
TRANSPORT EXTRA

Dual Electrode Technology (Strip-in-Pipe Technology)

The Dual Electrode Technology consists of two electrodes, with one electrode placed inside the other.

• The inner (main) electrode is manufactured from a GI strip, designed to carry heavy fault current safely during earth fault conditions.
• The outer (secondary) electrode is made from a GI pipe, which provides mechanical strength and protects the inner electrode from corrosion.
• The space between the electrodes is filled with a non-corrosive, inert conductive material, enhancing conductivity while protecting the main electrode from corrosion.
• This innovative design ensures long service life, excellent fault current carrying capacity, and reliable earthing performance.
• This technology is commonly known as Strip-in-Pipe Technology.

Key Benefits

• High fault current carrying capacity
• Superior corrosion resistance
• Long service life
• Low maintenance
• Reliable and stable earthing performance
• Suitable for industrial, commercial, and utility applications
