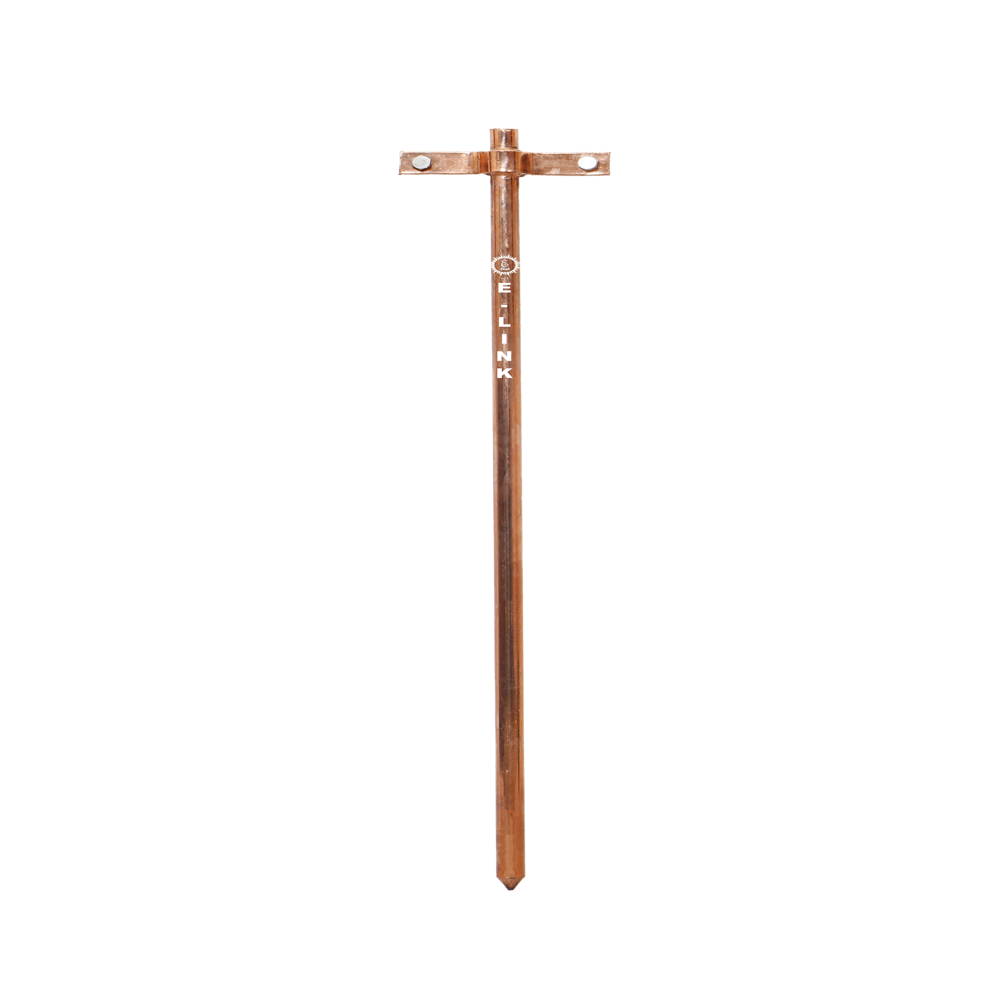

EARTHING SOLID ROD ELRC 172 ( 30 MICRON )

Name: EARTHING SOLID ROD ELRC 172 ( 30 MICRON )
Brand: E LINK ENTERPRISE
Price: 654.0 INR
Availability: InStock

Price 654.0 INR/ Number

Get a Price/Quote

MOQ : 1 Piece

EARTHING SOLID ROD ELRC 172 ( 30 MICRON ) Specification

Purity
99.9%

Diameter
17 Inch (in)

Life Span
10-12 YEAR

Strength
TENSILE

Copper Thickness
30 Micrometers (um)

Product Type
SOLID ROD

Function
GROUNDING

Shape
ROUND

Tolerance
10% Micrometers (um)

Dimension (L*W*H)
17*17*2000 Inch (in)

Weight
3.5 Kilograms (kg)

Color
COPPER

Warranty
1

Display Type
NO

Conductor
NO

Material
EARTHING

EARTHING SOLID ROD ELRC 172 ( 30 MICRON ) Trade Information

Minimum Order Quantity
1 Piece

Payment Terms
Cash on Delivery (COD), Cash in Advance (CID)

Supply Ability
5 Pieces Per Day

Delivery Time
5 Days

Sample Policy
Sample costs shipping and taxes has to be paid by the buyer

Certifications
CRPI ERDA

About EARTHING SOLID ROD ELRC 172 ( 30 MICRON )

E-Link Make :
Model : ELRC 172
Length of Rod : 2 Mtr

Dia of Rod : 17 mm

Coating: Copper

Micron : 30 Micron Avg.

Allowable Tolerance is as per IS 9550

TRANSPORT EXTRA

Solid Rod Earthing Method: A solid metal rod (GI or Copper Bonded) is driven into the ground to provide a low-resistance path for fault current, ensuring safe and effective earthing.

Reliable Copper Clad Steel Construction

Combining superior strength with high electrical conductivity, the EARTHING SOLID ROD ELRC 172 utilizes a copper clad steel core. This design ensures exceptional longevity and effective grounding, even under challenging environmental conditions. The 30-micron copper thickness and 99.9% copper purity further enhance its corrosion resistance, making it a preferred choice for long-term earthing solutions.

Optimal Grounding Performance

Designed specifically for grounding applications, this solid rod delivers stable earth connections that protect equipment and personnel from electrical faults. Its 17-inch diameter and 2000-inch length provide ample surface area for dissipation of fault currents, ensuring reliable and secure performance in both residential and industrial installations.

FAQ's of EARTHING SOLID ROD ELRC 172 ( 30 MICRON ):

Q: How is the EARTHING SOLID ROD ELRC 172 installed for grounding?

A: The installation involves driving the rod vertically into the ground at the designated earthing location, ensuring maximum soil contact. Proper soil treatment may be necessary to achieve optimal conductivity, and additional connectors or grounding clamps can be used for secure attachment to electrical systems.

Q: What makes the copper clad steel material advantageous for earthing purposes?

A: Copper clad steel combines the high conductivity of copper with the durability of steel. The 30-micron thick copper layer provides excellent corrosion resistance and long-term electrical performance, while the steel core offers superior mechanical strength for withstanding ground movement and external forces.

Q: When should the EARTHING SOLID ROD ELRC 172 be used in electrical installations?

A: This rod is recommended whenever a durable and efficient earth connection is essential-particularly in industrial, commercial, and high-load electrical environments. It is advisable for use in new installations, upgrades, or as a replacement when existing earthing systems deteriorate.

Q: Where can the EARTHING SOLID ROD ELRC 172 be sourced or installed in India?

A: Manufactured and supplied across India, the ELRC 172 rod is available through authorized electrical wholesalers, distributors, or directly from the manufacturer. It is suitable for installation in a variety of soils and environments on both residential and industrial sites.

Q: What is the process for maintaining the performance of the earthing rod over its life span?

A: Routine inspections are recommended to check for signs of corrosion or mechanical damage, especially near connection points. Ensuring solid, tight connections and, if needed, periodic soil conductivity testing can help maintain the rod's effectiveness throughout its 10-12 year service period.

Q: Can the EARTHING SOLID ROD ELRC 172 be used with other grounding systems?

A: Yes, the ELRC 172 is compatible with a range of grounding systems and accessories. It can function as a standalone earth electrode or be incorporated into networked earthing grids for enhanced protection, depending on system requirements.
