Earthing Solid Rod ELRC- 192 ( 30-50 MICRON )

About Earthing Solid Rod ELRC- 192 ( 30-50 MICRON )

Model : ELRC 192

Length of Rod : 2 Mtr

Dia of Rod : 19 mm

Coating: Copper

Micron : 50 Micron Avg.

Allowable Tolerance is as per IS 9550


Transpoty extra

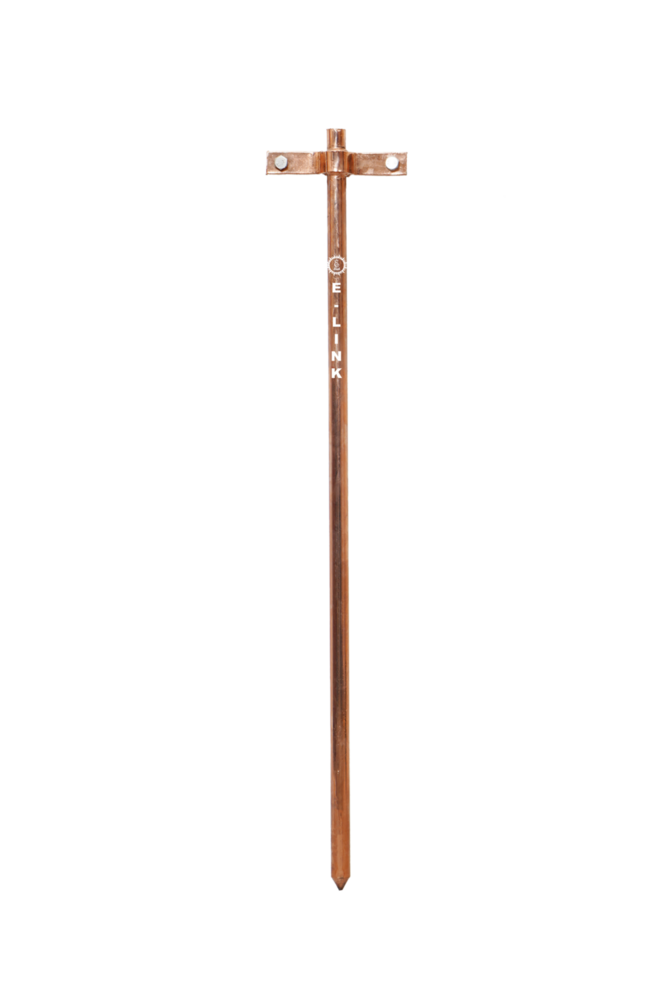

Solid Copper Bonded Earthing Rod

• Manufactured from a High Tensile Low Carbon Steel Core for superior mechanical strength.
• 99.9% Pure Electrolytic Copper is molecularly bonded to the steel core, ensuring excellent conductivity and long service life.
• Copper bonding thickness available from 30 to 250 microns.
• Available in diameters ranging from 12 mm to 45 mm.
• Standard lengths available from 1 meter to 6 meters.
• Arrow-shaped bottom design allows easy driving into the soil during installation.
• Available in Threaded and Non-Threaded versions.
• Options available with clamp or without clamp.
• Compatible accessories include:
  • T Clamp
  • Exothermic Clamp
  • Universal Clamp
• Also available in:
  • Hot Dip Galvanized Iron (HDGI)
  • Stainless Steel
  • Pure Copper
• GETCO Approved models are also available.
