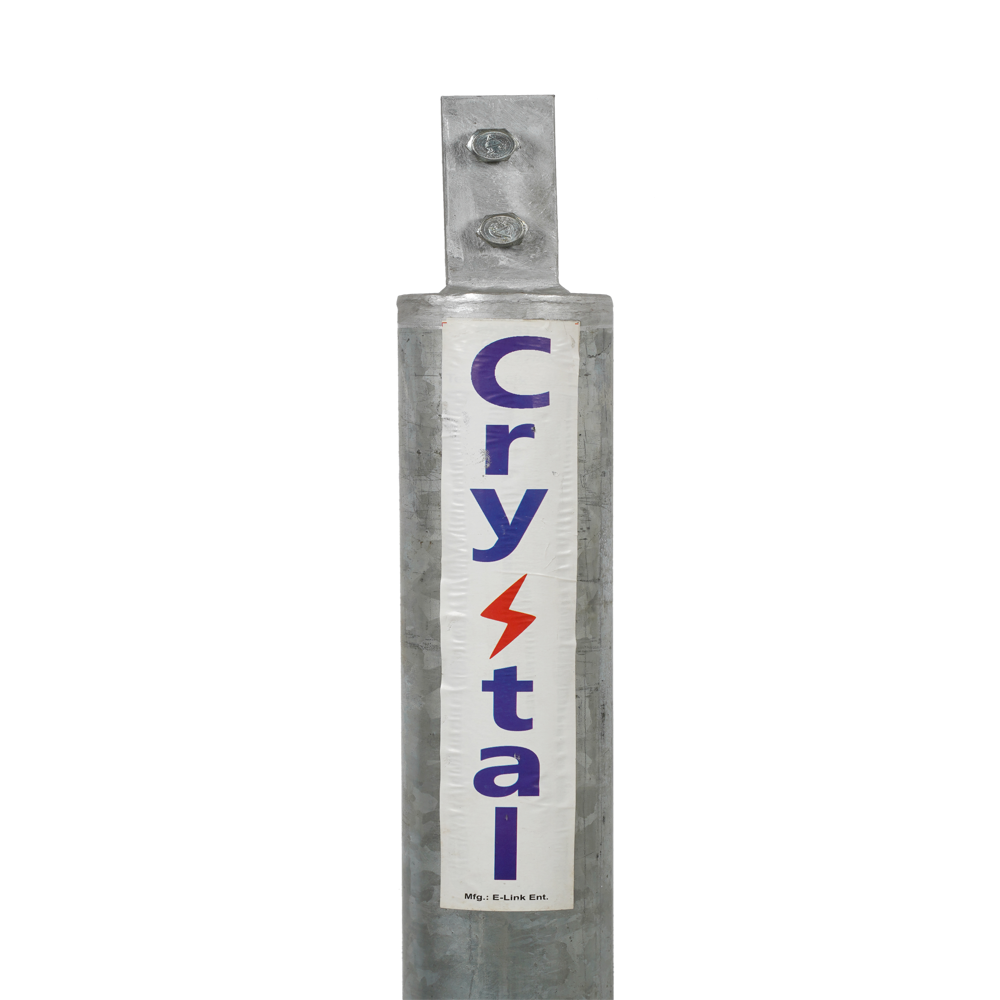

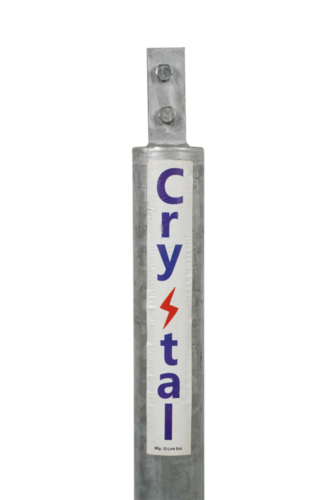

GALAVAZIED EARTHING ELECTRODE CRDG - 803 ( CRYSTAL MODEL ) Specification

Copper Thickness
80 Micrometers (um)

Strength
NA

Purity
99. 9 %

Life Span
20 YEARS OF SAFETY

Diameter
77 Millimeter (mm)

Product Type
EARTHING

Application
EARTHING

Function
EARTHING SAFETY

Shape
ROUND

Surface Treating
GALVENIZED

Tolerance
10% Millimeter (mm)

Dimension (L*W*H)
803 Millimeter (mm)

Weight
26.20 Kilograms (kg)

Color
Silver

Warranty
1 YEAR

Display Type
NO

Material
EARTHING

GALAVAZIED EARTHING ELECTRODE CRDG - 803 ( CRYSTAL MODEL ) Trade Information

Minimum Order Quantity
1 Set

FOB Port
nahvasehva /hazira

Supply Ability
2000 Sets Per Month

Delivery Time
5 Days

Packaging Details
BUBBLE PACKING

Main Domestic Market
All India

About GALAVAZIED EARTHING ELECTRODE CRDG - 803 ( CRYSTAL MODEL )

Specifications of GI EARTHING ROD :

E-Link Make : ( CRYSTAL)
Model : CRDC 803
Length of pipe : 3 Mtr
Outer Pipe Dia : 77 mm
Outer Pipe Thickness
Ineer strip size: 40*6 MS
(30-50 MICRON COPPER COATED)
Innerfilled Chemical resistivity : >30 ohm-mtr.
Allowable Tolerance is as per IS 1239 (-10%)

TRANSPORT EXTRA

Method: Copper Coated Strip-in-Pipe Chemical Earthing Method

Description:
Copper-coated MS strip (40 6 mm) enclosed inside a 77 mm GI pipe and filled with a conductive chemical compound for low earth resistance, high fault current carrying capacity, corrosion resistance, and long service life. Manufactured as per IS 1239 tolerance.
