EARTHING ELECTRODE CRDG 806 CRYSTAL MODEL

Send Inquiry

Request To Call Back

EARTHING ELECTRODE CRDG 806 CRYSTAL MODEL

Name: EARTHING ELECTRODE CRDG 806 CRYSTAL MODEL
Brand: E LINK ENTERPRISE
Price: 7194.00 INR
Availability: InStock

Price 7194.00 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

EARTHING ELECTRODE CRDG 806 CRYSTAL MODEL Specification

Life Span
1 YEAR

Purity
99.9%

Copper Thickness
80 Millimeter (mm)

Diameter
806 Millimeter (mm)

Application
Industrial

Function
To safely discharge fault current

Shape
Cylindrical Rod

Surface Treating
Polished

Tolerance
10% Millimeter (mm)

Dimension (L*W*H)
76*76*6000 Millimeter (mm)

Weight
44 Kilograms (kg)

Color
Silver

Rated Voltage
100- 240 Volt (V)

Operating Temperature
-10 to +80 Celsius (oC)

Warranty
1 YEAR

Display Type
NA

Material
EARTHING

Frequency
50 / 60 Hertz (HZ)

Conductor
NA

EARTHING ELECTRODE CRDG 806 CRYSTAL MODEL Trade Information

Minimum Order Quantity
1 Piece

FOB Port
nahvasehva /hazira

Supply Ability
2000 Pieces Per Month

Delivery Time
5 Days

Sample Available
No

Packaging Details
BUBBLE PACKING

Main Domestic Market
All India

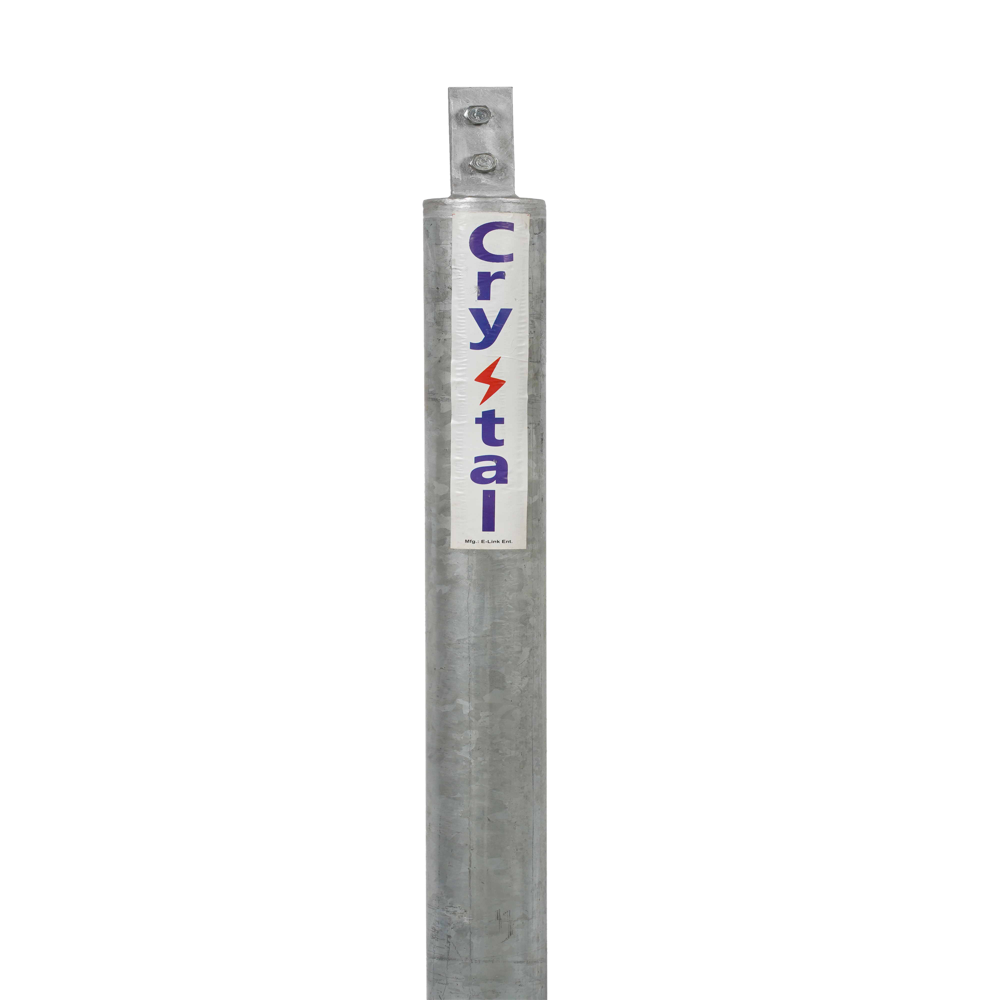

EARTHING ELECTRODE CRDG 806 CRYSTAL MODEL About

E-Link Make : ( CRYSTAL MODEL )

Model : CRDG 806

Length of pipe : 6 Mtr

Outer Pipe Dia : 76 mm

Outer Pipe Thickness : 1.6 mm

(GALVANIZED)

Inner strip size: 40*6 (MS TOP TO BOTTOM WELDED)

Innerfilled Chemical resistivity : >30 ohm-mtr.

Allowable Tolerance is as per IS 1239 (-10%)

TRANSPORT EXTRA

The Galvanized Earthing Electrode is designed to provide low-impedance grounding in high-resistivity soil. It safely dissipates lightning energy and electrical fault currents, ensuring reliable and long-lasting performance. Its hot-dip galvanized construction offers excellent corrosion resistance, high mechanical strength, and durability, making it suitable for industrial, commercial, and infrastructure applications.
