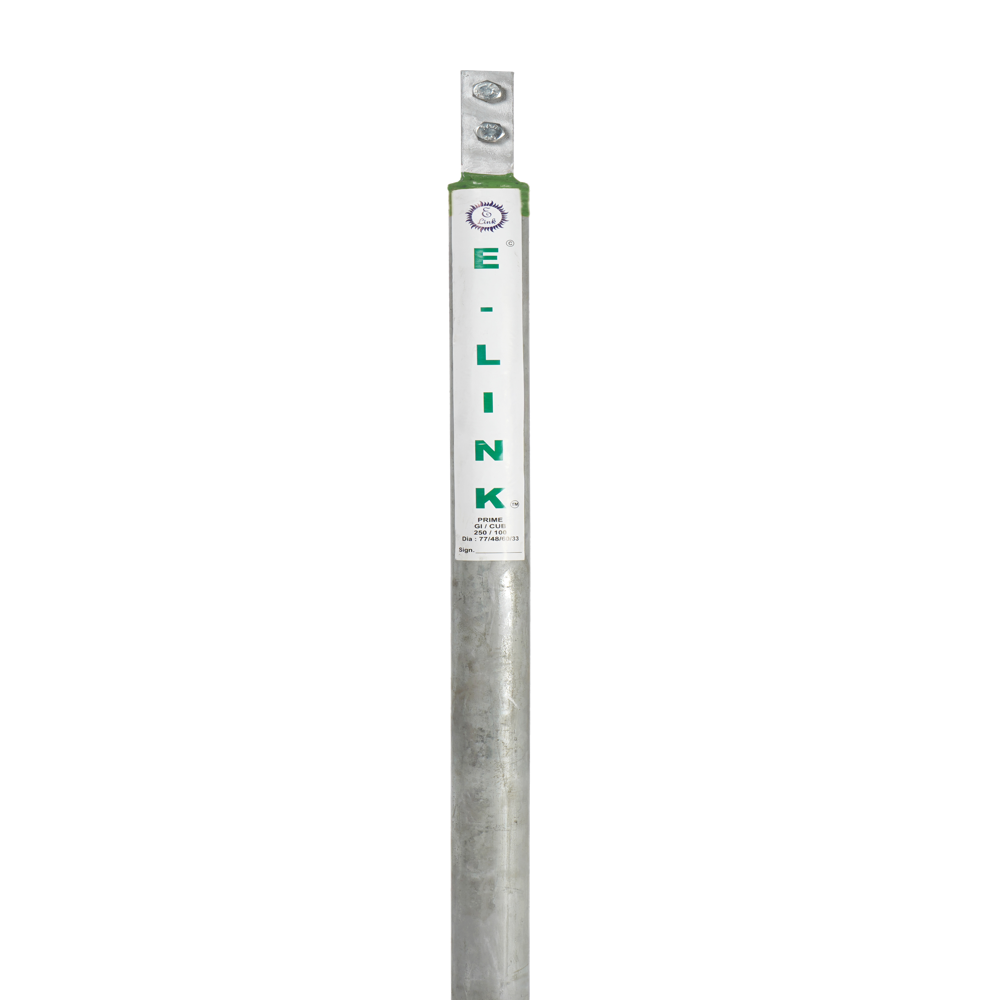

EARTHING ELECTRODE ELDGP- 803 PRIME MODEL

Send Inquiry

Request To Call Back

EARTHING ELECTRODE ELDGP- 803 PRIME MODEL

Price 5662.00 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

EARTHING ELECTRODE ELDGP- 803 PRIME MODEL Specification

Life Span
20-25 YEAR

Diameter
803 Inch (in)

Copper Thickness
80 Micrometers (um)

Purity
99.9 %

Application
Industrial

Function
To safely discharge fault current

Shape
Cylindrical Rod

Surface Treating
Polished

Tolerance
10% Millimeter (mm)

Dimension (L*W*H)
76*76*3000 Millimeter (mm)

Weight
37.2 Kilograms (kg)

Color
Silver

Rated Voltage
100- 240 Volt (V)

Operating Temperature
-10 to +80 Celsius (oC)

Warranty
1 YEAR

Display Type
NA

Conductor
NA

Material
EARTHING

Frequency
50 / 60 Hertz (HZ)

EARTHING ELECTRODE ELDGP- 803 PRIME MODEL Trade Information

Minimum Order Quantity
1 Piece

FOB Port
nahvasehva /hazira

Supply Ability
2000 Pieces Per Month

Delivery Time
5 Days

Sample Available
No

Packaging Details
BUBBLE PACKING

Main Domestic Market
All India

EARTHING ELECTRODE ELDGP- 803 PRIME MODEL About

E-Link Make : ( PRIME MODEL )

Model : ELDGP 803

Length of pipe : 3 Mtr

Outer Pipe Dia : 76 mm

Outer Pipe Thickness : 3.6 mm

(GALVANIZED)

Ineer strip size: 50*10 (80 microns HDGI TOP TO BOTTOM

WELDED)

Innerfill Mtaerial resistivity :0.13 ohm-mtr.

Allowable Tolerance is as per IS 1239 (-10%)

TRANSPORT EXTRA

The Galvanized Earthing Electrode is specially designed to provide a low-impedance grounding system in areas with high soil resistivity. It is used to safely dissipate lightning energy, electrical fault currents, and other undesirable surge currents, even in sandy, rocky, or poor soil conditions.
