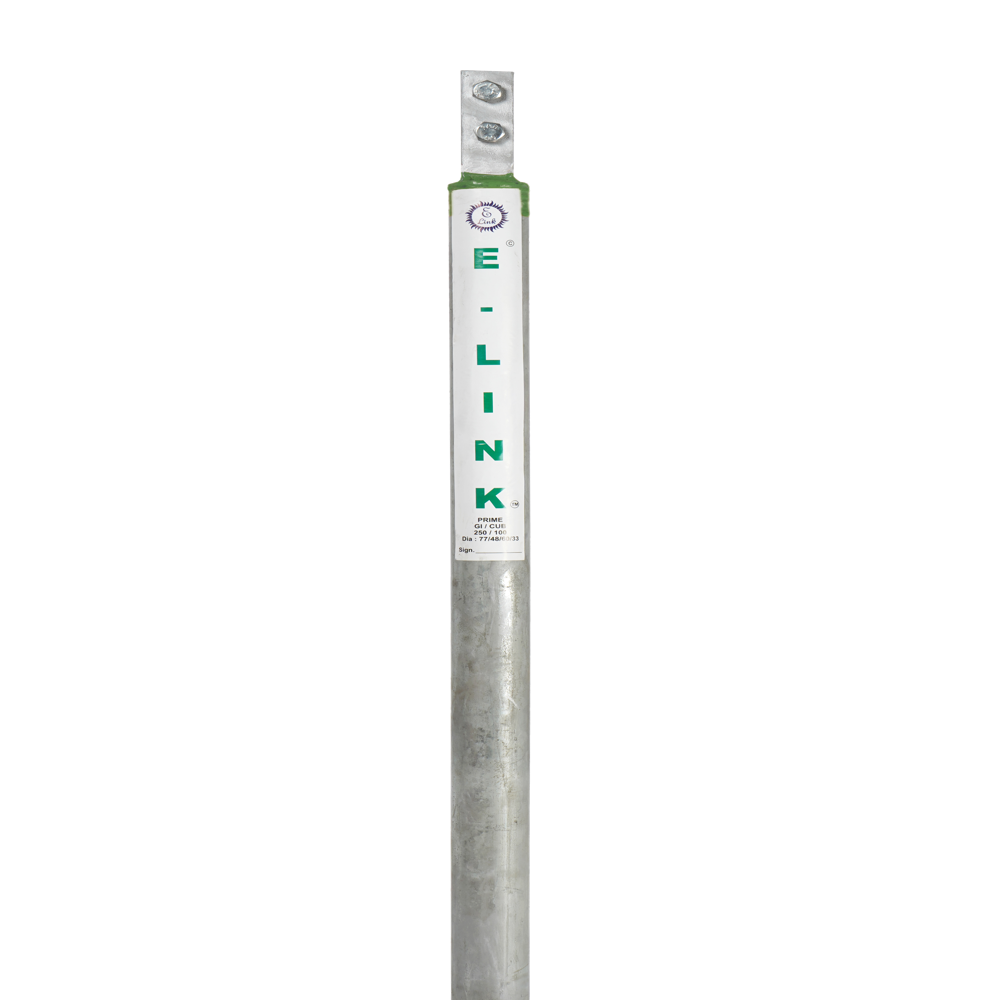

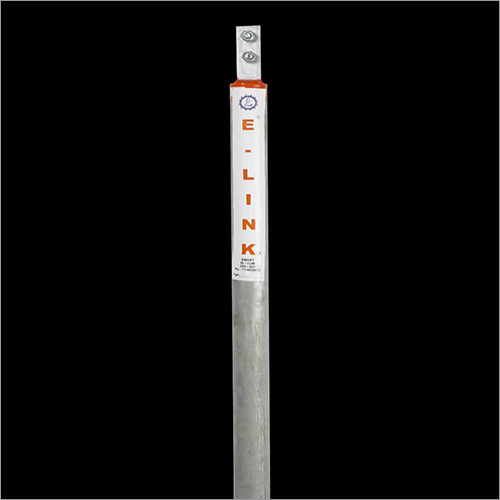

GALVANIZED ELECTRODE ELDGP -502

Name: GALVANIZED ELECTRODE ELDGP -502
Brand: E LINK ENTERPRISE
Price: 1999.0 INR
Availability: InStock

Price 1999.0 INR/ Unit

Get a Price/Quote

MOQ : 1 Piece

GALVANIZED ELECTRODE ELDGP -502 Specification

Copper Thickness
80 Micrometers (um)

Purity
99.99%

Life Span
20 year

Diameter
21 Meter (m)

Product Type
Galvanized Earthing Electrode

Application
Earthing

Function
earthing

Shape
Round

Dimension (L*W*H)
48*48* 2000 Meter (m)

Weight
12.25 Kilograms (kg)

Color
Copper

Warranty
1 Year

Material
GALAVAZIED

GALVANIZED ELECTRODE ELDGP -502 Trade Information

Minimum Order Quantity
1 Piece

FOB Port
nahvasehva /hazira

Supply Ability
300 Pieces Per Day

Delivery Time
5 Days

Packaging Details
BUBBLE PACKING

Main Domestic Market
All India

About GALVANIZED ELECTRODE ELDGP -502

Galvanized Earthing Electrode is designed to give a low impedance ground in areas with high soil resistivity. It is used to dissipate lighting energy and other unfavorable electrical fault currents even in sandy or soil conditions. This device is unmatched in terms of design and performance. It has got the capability of withstanding heat, moisture, heavy loads, and other degradation, therefore, we are seeing a huge demand for the Galvanized Earthing Electrode in the marketplace.

Specification

E-Link Make : ( PRIME MODEL ) Model : ELDGP 502 Length of pipe : 2 Mtr

Outer Pipe Dia : 48 mm Outer Pipe Thickness : 3.2 mm

(GALVANIZED)

Terminal strip size: 40*6

(inner strip size 40*6mm ,

80 microns HDGI TOP TO BOTTOM WELDED) Innerfill Chemical resistivity :0.13 ohm-mtr. Allowable Tolerance is as per IS 1239 (-10%)

Transport Extra
